The KLS24 features 24 network ports, supporting a maximum pixel capacity of 15.6 million pixels, a maximum resolution of 40,960 x 40,960 pixels, and can drive LED displays directly without requiring an external controller.

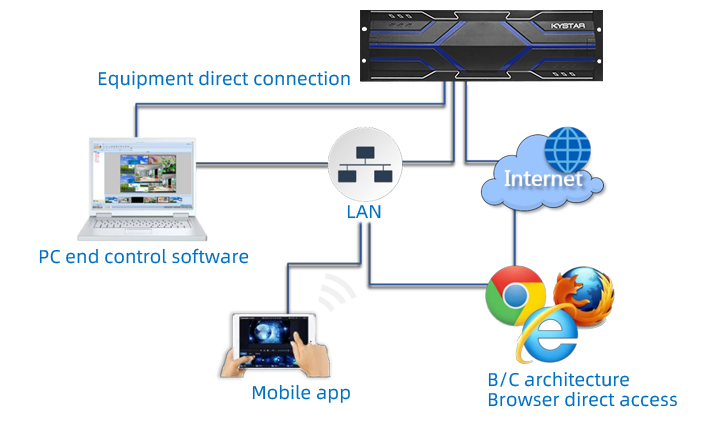

Multiple Management Options:

1. Local PC Control: Connect directly via Ethernet cable or to a local area network (LAN) to operate and manage the system using PC-based control software.

2. Web-Based Control: Access and manage the system remotely through a standard web browser via LAN or the Internet.

3. Mobile App Control: Control and manage the system via mobile device apps over Wi-Fi networks.

• Dual 4K@60Hz Signal Switching: Supports real-time switching between two 4K@60Hz input signals directly on the screen.

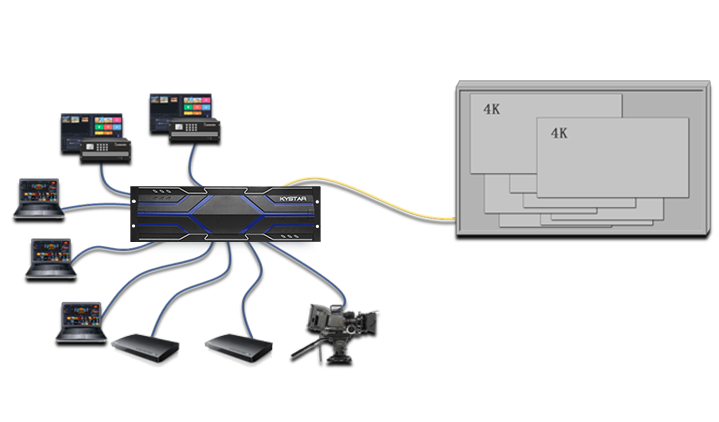

• Multi-Signal Display: Capable of displaying up to 16 different input signal sources simultaneously on-screen, including two 4K signals.

• Flexible Screen Management: Outputs can be displayed across network ports, supporting arbitrary window superposition (overlay) and size adjustment.

The FPGA-based hardware architecture ensures inherently secure and stable operation. With no CPU or core processors, it eliminates risks of viral infection and system crashes. The system achieves a Mean Time Between Failures (MTBF) exceeding 30,000 hours, enabling reliable 24/7 continuous operation.

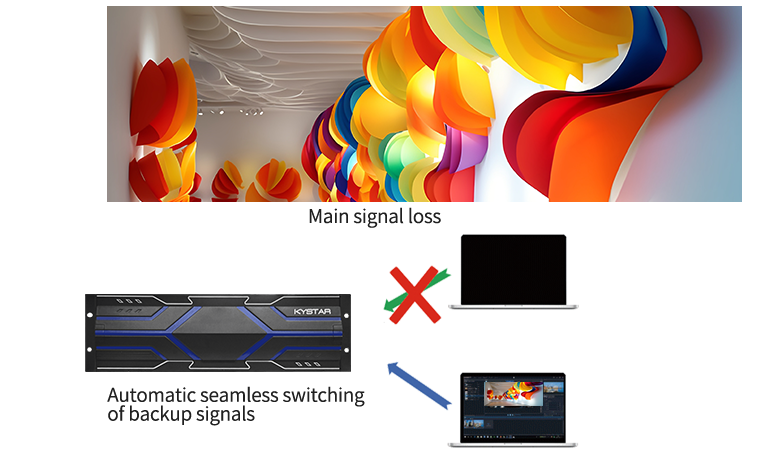

Any signal source can serve as a backup for the current signal. Upon signal failure, an automatic and seamless switchover to the backup signal occurs.
