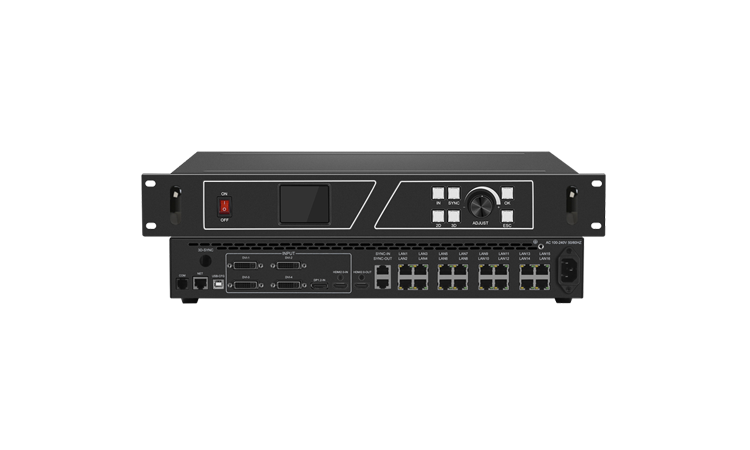

ES16

Features：：

Sixteen network ports with 10 million loads

4K@60Hz signal input

One-click 2D/3D conversion

Support KSF synchronization technology

SDR to HDR image optimization

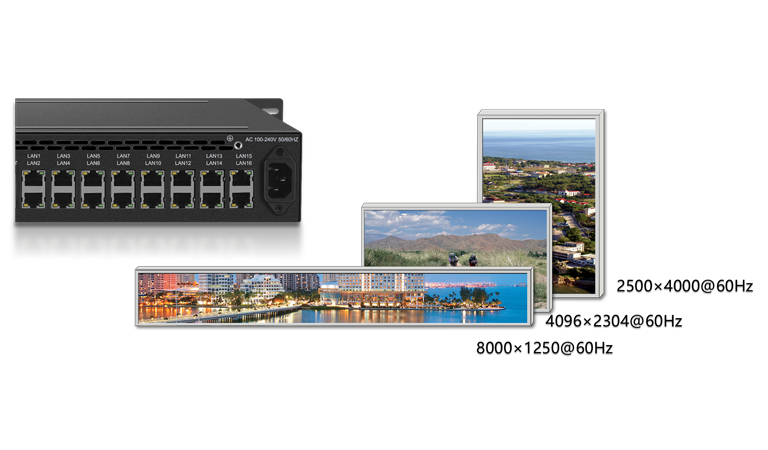

Sixteen network ports with 10 million loads

ES16 supports sixteen network port output, a single machine can complete the 10 million pixel display load, the widest 8000 pixels, the highest 4000 pixels.

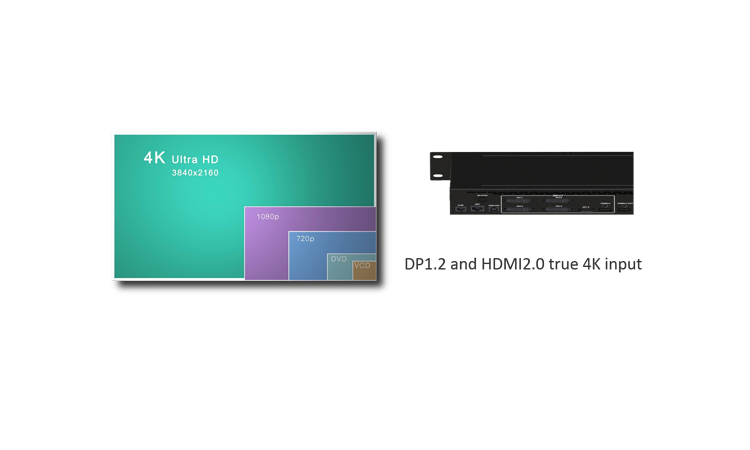

4K master mode

ES16 is equipped with a DP1.2 and HDMI2.0 true 4K input, up to 10 million pixels at 60Hz, and supports custom resolution.

At the same time, S16 is also equipped with four DVI inputs, each DVI supports a custom resolution of 2.5 million pixels, four DVI can be combined to complete 4K@60Hz display.

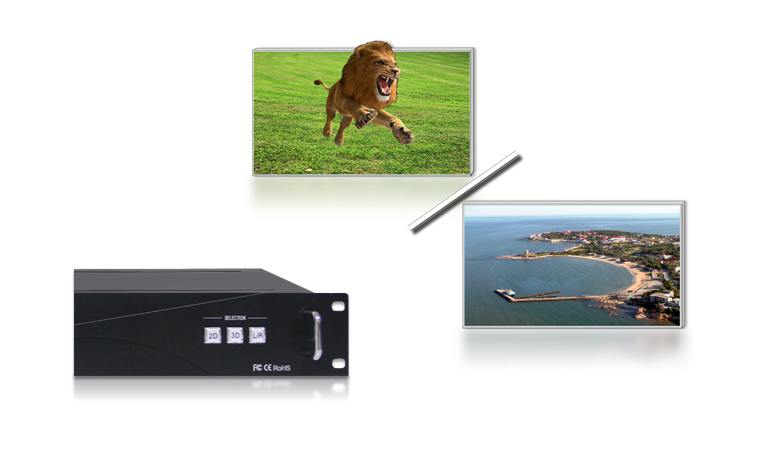

One-click 2D/3D conversion

ES16 supports both 2D and 3D display modes. Users can switch between different modes by pressing a button on the device panel to adapt to different material playback.

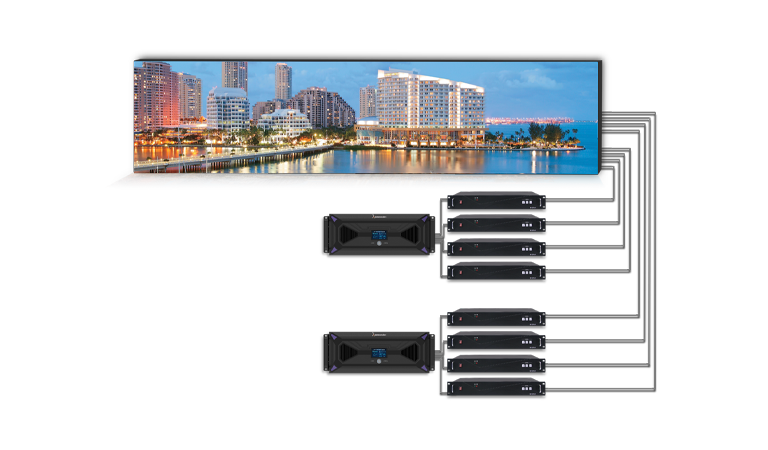

Support KFS synchronization technology

KFS (Kystar Frame Synchronization) synchronization technology is used to ensure the frame synchronization playback of multiple Kommander servers, which enables ES16 and Kommander servers to form a multi-machine synchronous cascading super-resolution display solution.

SDR to HDR image optimization

ES16 supports SDR to HDR image optimization technology, which can improve the contrast of ordinary SDR video and enhance the image detail performance, so that ordinary video has HDR effect.
